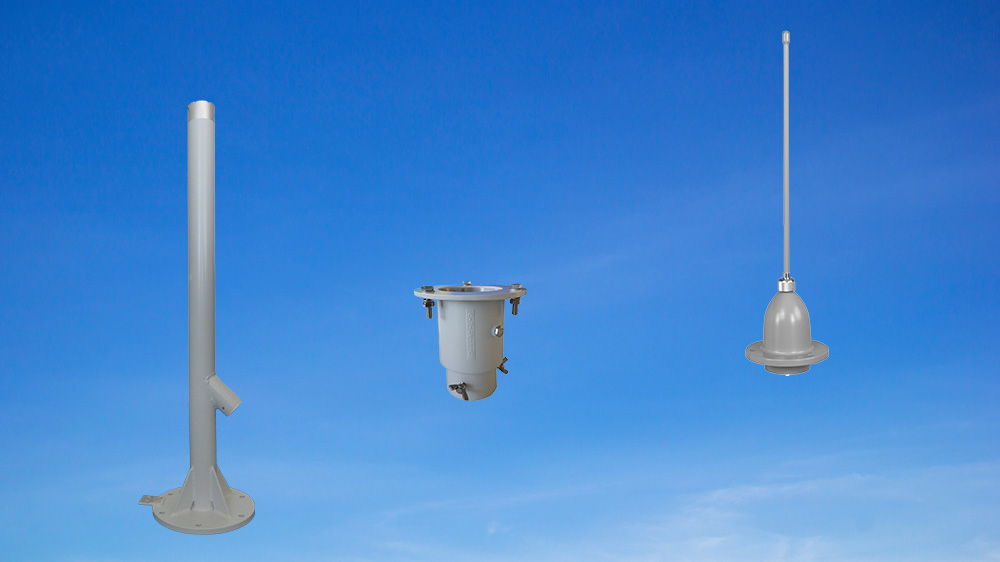

Supporting Mast TR Series

The supporting mast is applicable when the application requires the mounting of an active antenna of the STA series on a mast. The supporting masts are available in several versions.

For the mounting of aas.tech active monopole antennas of the STA series the holder EAH 1 is required. Active dipole or combination antennas can be mounted directly.

When using the supporting mast TR 10/E1 with the holder EAH 1 the distance from ground to antenna base is 1 m.

The TR 10/E1 is a lightweight mast, coloured RAL 7035 made of aluminium and mast internal N cable assembly. The cable outlet is fitted with an N-Socket flange.

The mast basement provides an earthing lug.

Customer requirements can be considered on request.
For further information download the product information or contact us at
