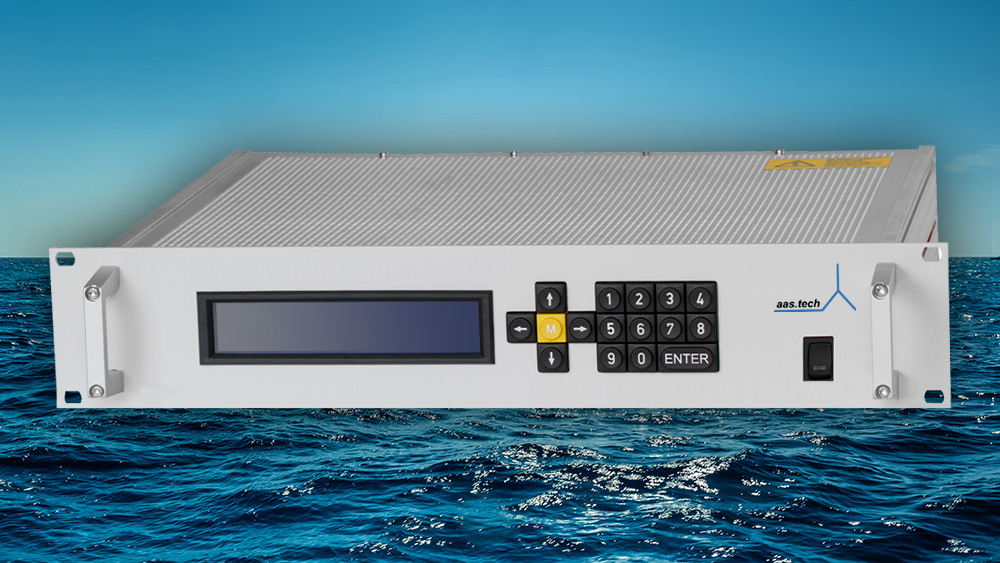

AVA Series (10 kHz – 30 MHz)

The Antenna Distribution System AVA is a flexible non-blocking switching distribution solution for short wave communication applications. The AVA series is furnished into a single 19-inch 2 HU slide-in unit and covers the frequency range from 10 kHz to 30 MHz providing the non-blocking switching distribution of up to 4 antenna inputs to max. 20 receiver outputs.

The AVA 10 series is available in various configurations with 1 – 4 inputs and up to 10 outputs.

The AVA 20 series is available in various configurations with 1 – 4 inputs and up to 20 outputs.

The AVA series provide

• Remote control interface (Network LAN or serial interface)
• Flexible configuration to meet application needs
• Fast input to output non-blocking switching
• Switchable input attenuator (automatic – 0dB – 6dB – 20dB)
• Input protection 2 kV 50 us
• Monitoring of active antennas, preamplifiers, and channel amplifiers
• Number of inputs and outputs according to customer requirement
• Special preamplifiers available for limitation of frequency range or passive bypass
• No restriction concerning the antenna selection

The AVA series can be powered from a standard AC and/or DC (battery) mains supply.

Customer requirements can be considered on request.
