aas.tech Strain Insulator GT 300

Strain Insulator GT 300

Published in Antenna Accessories

The insulator is designed for antenna installation applications on board of seagoing vessels. The insulation characteristics are at an optimum even under rough environmental conditions.

The insulator is not affected by aggressive media which are likely to be encountered aboard seagoing ships.

The insulator does not absorb moisture for a long time. The build-up of ice or dust is largely prevented by the water-repellent surface.

The insulator provides excellent electrical characteristics, for example an extremely high insulation resistance, negligible surface conductivity, low dielectric loss factor and a good resistance to creepage currents and arcing.

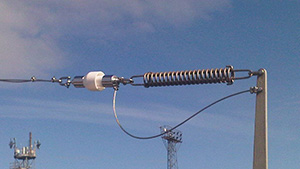

GT 300 with Spring 1

PTFE insulators are not affected by any aggressive media which are likely to be encountered aboard seagoing ships. At tropical temperatures, immunity to attack by chemicals is guaranteed for inorganic acids in concentrations up to 20%, alkalis, aqueous solutions of inorganic salts, organic acids, alcohols, aldehydes, ketones, esters, and amines and, of course, sea water.

Also, PTFE insulators do not absorb moisture if immersed in water for a long time. The build-up of ice or dust is largely prevented by the water-repellent surface. The GT 300 is equipped with electrolytic polished fittings.

PTFE insulators have excellent electrical characteristics, for example an extremely high insulation resistance, negligible surface conductivity, low dielectric loss factor and a good resistance to creepage currents and arcing. There is no degradation of the electrical data in humid environments.

Customer requirements can be considered on request.
For further information download the product information or contact us at
