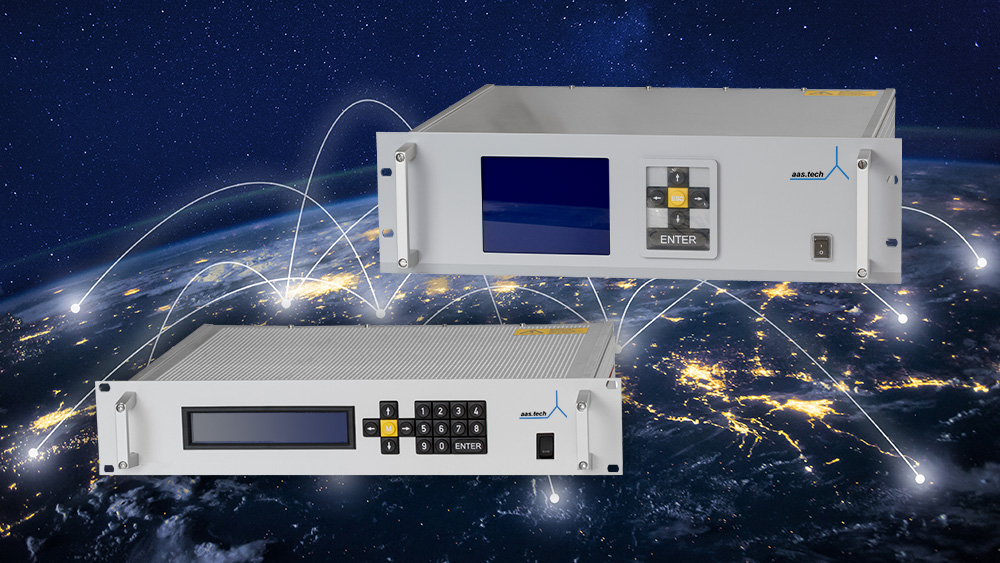

Matrix Systems

Our matrix systems are flexible non-blocking switching distribution solutions for long, medium, and short-wave communication applications covering the frequency range from 10 kHz – 30 MHz.

The Antenna Distribution System AVA is a flexible non-blocking switching distribution solution for short wave communication applications. The AVA series is furnished into a single 19-inch 2 HU slide-in unit and covers the frequency range from 10 kHz to 30 MHz providing the non-blocking switching distribution of up to 4 antenna inputs to max. 20 receiver outputs.

The Antenna Distribution System AVB is a flexible non-blocking switching distribution solution for short wave communication applications. The AVB series is furnished into a single 19-inch 2 HU slide-in unit and covers the frequency range from 1.5 MHz to 30 MHz providing the non-blocking switching distribution of up to 4 antenna inputs to max. 20 receiver outputs.

The Antenna Distribution System AVS 2G (2nd generation) is a very flexible distribution solution for short wave communication applications. The single housing variants are furnished into a 19-inch 4 HU slide-in unit providing the non-blocking switching distribution of up to 8 antenna inputs to up to 40 receiver outputs.
AVS 2G system solutions with more than 8 inputs and/or more than 40 outputs are available.
