AVS 2G Series (10 kHz – 30 MHz)

Published in Matrix Systems

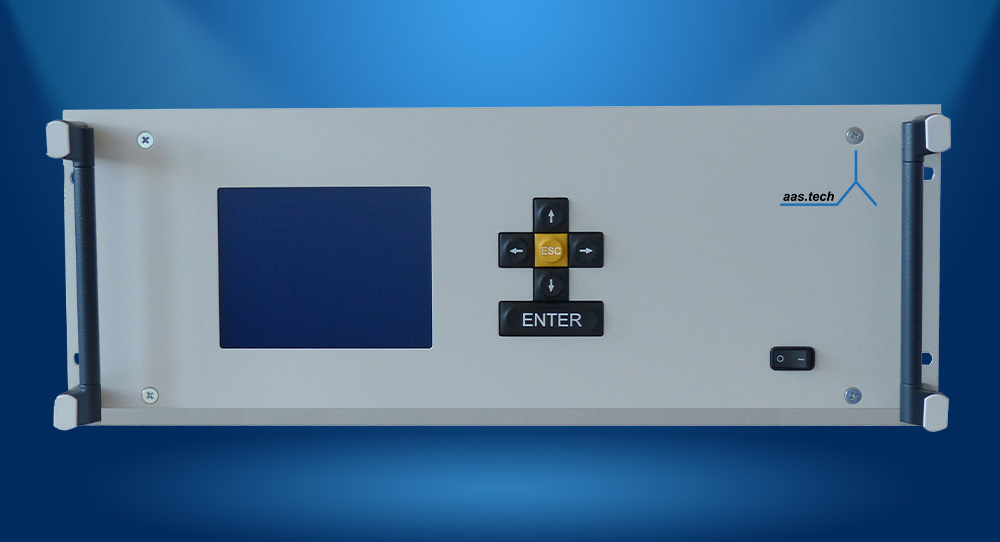

The Antenna Distribution System AVS 2G (2nd generation) is a very flexible distribution solution for short wave communication applications. The single housing variants are furnished into a 19-inch 4 HU slide-in unit providing the non-blocking switching distribution of up to 8 antenna inputs to up to 40 receiver outputs.
AVS 2G system solutions with more than 8 inputs and/or more than 40 outputs are available.

The AVS 2G “A” versions cover 0.01 – 30 MHz.

The AVS 2G “B” versions cover 1.5 – 30 MHz.

There are no restrictions concerning the assignment of antennas to receivers. All receivers can also be assigned to one antenna without any reduction of power.

The antenna distribution system is controlled and monitored in local operation from the front panel and in remote operation through a LAN interface.

An integrated control unit monitors the distributor system. The antenna/receiver configuration is stored so that after a mains failure or after switching off the system the previous switching conditions are automatically restored.

The AVS 2G series provide

- Remote control LAN interface
- Fast input to output switching
- Input protection 2 kV 50 us
- Monitoring of active antennas, preamplifiers, and channel amplifiers
- Flexible configuration to meet application needs
- Number of inputs and outputs according to customer requirement
- No restriction concerning the antenna selection

To meet future application needs the AVS 2G system concept provides upgrade features to different number of inputs or outputs for the user convenience.

AVS 2G system solutions with more than 8 inputs and/or more than 40 outputs are available.
The number of antenna inputs can be configured in steps of 4.
The number of receiver outputs can be configured in steps of 10.

Customer requirements can be considered on request.
For further information download the product information or contact us at
