Active Antennas

  • AAN 100 Series aas.tech AAN 100

    The remote power supply AAN 100 series is a very flexible solution applicable for up to 4 active antennas to be supplied with a remote power feeding through the coaxial cable. Different types of active antennas are supported.
  • AAN 300 aas.tech HD 1 A/P - HA 1 AP with AAN 300

    The Remote Power Supply and Control Unit AAN 300 is applicable for the antenna HD 1 A/P – HA 1 A/P. Both the AAN 300 and the HD 1 A/P – HA 1 A/P form an active/passive receiving antenna system. The AAN 300 provides the remote supply voltage for the active / passive receiving antenna at two rear ports through the coaxial cable.

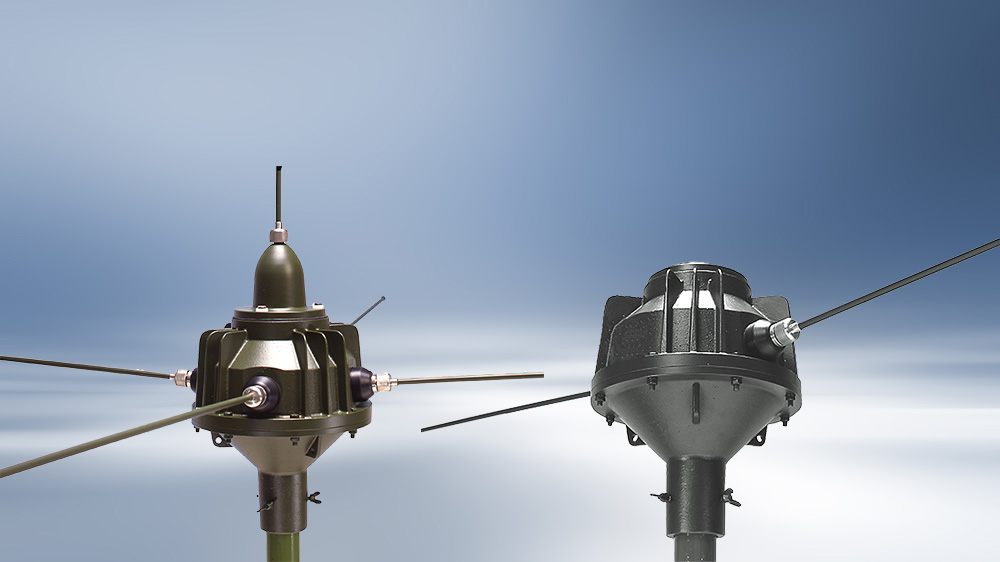

  • Active Dipoles Active Antennas HD 2 A + STA + HD 1A

    The active dipole receiving antennas provide a large bandwidth and dynamic range for the medium- and short-wave bands covering the frequency range from 1.5 MHz – 30 MHz.
  • Active Dipoles Active Antennas HD 2 A + STA + HD 1A

    The active dipole receiving antennas provide a large bandwidth and dynamic range for the medium- and short-wave bands covering the frequency range from 1.5 MHz – 30 MHz.
  • Active Monopoles 4 Active Monopoles STA 10 Series

    The active monopole receiving antennas provide omnidirectional characteristics in the long-, medium- and short-wave bands covering the frequency range from 10 kHz – 100 MHz.
  • Active Monopoles 4 Active Monopoles STA 10 Series

    The active monopole receiving antennas provide omnidirectional characteristics in the long-, medium- and short-wave bands covering the frequency range from 10 kHz – 100 MHz.
  • HD 1 A Activ Dipole Antenna HD 1 A

    The HD 1 A is an active dipole receiving antenna providing a large bandwidth and dynamic range for the medium- and short-wave bands.
    It covers the frequency range from 1.5 MHz – 30 MHz.

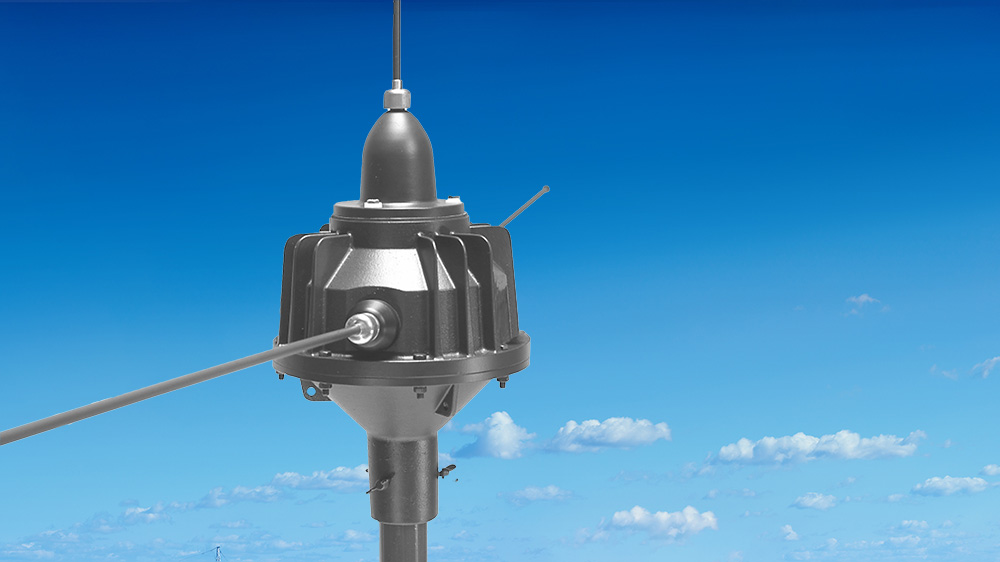

  • HD 1 A + STA 10 A/D/0.01-100 Active Combination Antenna HD 1 A + STA 5 A/D/0.01-100

    The HD 1 A + STA 10 A/D/0.01-100 combines a horizontally and vertically polarized receiving antenna into one antenna system.
    The antenna is mostly applied where horizontally polarized waves are to be received in the frequency range 1.5 - 30 MHz.
    The vertical monopole covers the frequency range from 0.01 - 100 MHz.

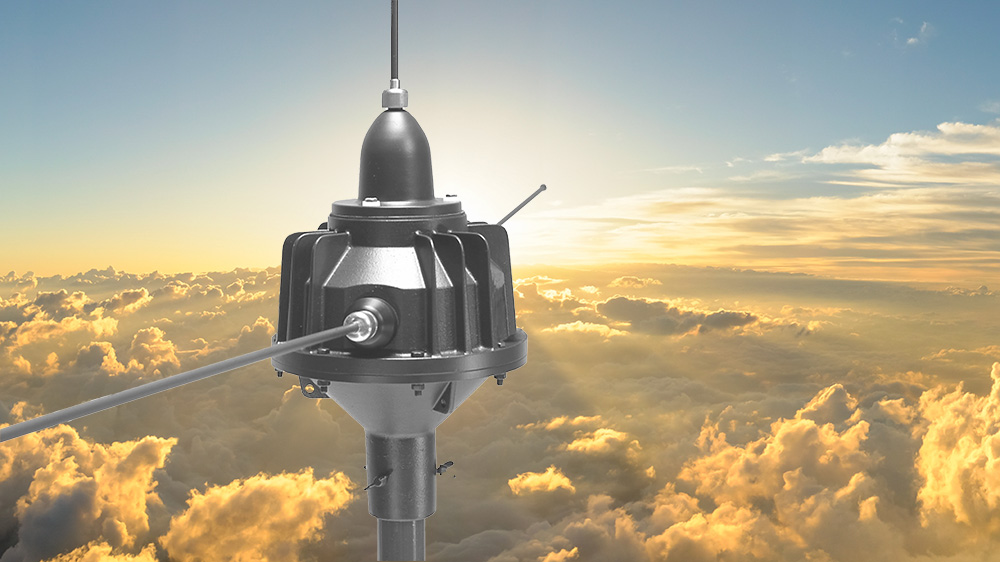

  • HD 1 A + STA 10 A/D/0.01-30 Active Combination Antenna HD 1 A + STA 10 A/D/0.01-30

    The HD 1 A + STA 10 A/D/0.01-30 combines a horizontally and vertically polarized receiving antenna into one antenna system.
    The antenna is mostly applied where horizontally polarized waves are to be received in the frequency range 1.5 - 30 MHz.
    The vertical monopole covers the frequency range from 0.01 - 30 MHz.
  • HD 1 A/P – HA 1 A/P aas.tech HD 1 A/P - HA 1 AP with AAN 300

    This antenna is an active/passive receiving antenna for reception in the shortwave range (1.5 - 30 MHz). It is intended for use in installations on land or on-board naval vessels It consists of a horizontally polarized dipole and a horizontally polarized monopole. Both antennas can be operated either in active mode (optimal sensitivity) or in passive mode (optimal interference immunity).
  • HD 2 A Active Dipole Antenna HD 2 A

    The HD 2 A is an active crossed dipole receiving antenna  providing a large bandwidth and dynamic range for the medium- and short-wave bands.
    It covers the frequency range from 1.5 MHz – 30 MHz.

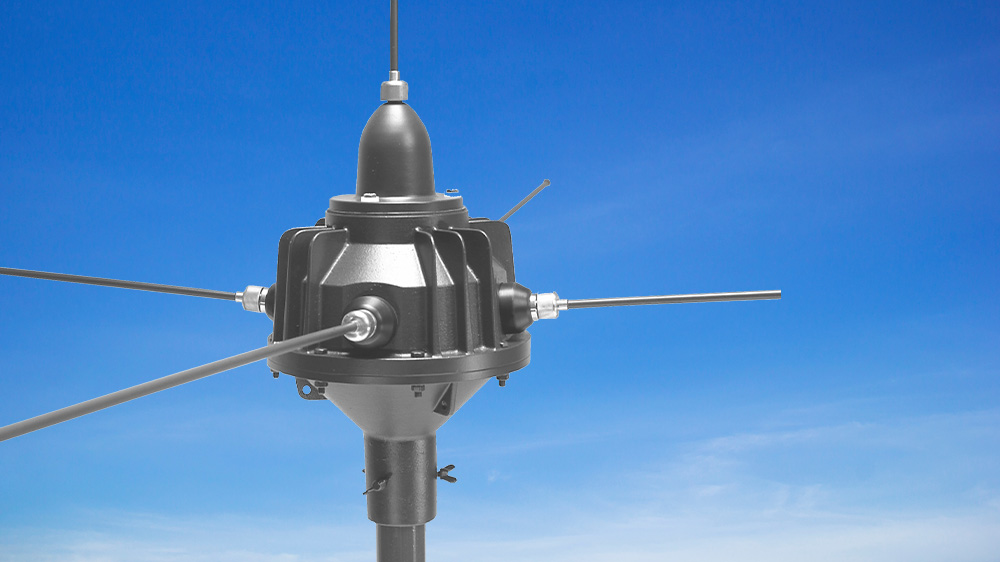

  • HD 2 A + STA 10 A/D/0.01-100 Active Combination Antenna HD 2 A + STA 5 A/D/0.01-100

    The HD 2 A + STA 10 A/D/0.01-100 combines two horizontally and one vertically polarized receiving antenna into one antenna system.
    The antenna is mostly applied where horizontally polarized waves are to be received in the frequency range 1.5 - 30 MHz.
    The vertical monopole covers the frequency range from 0.01 - 100 MHz.

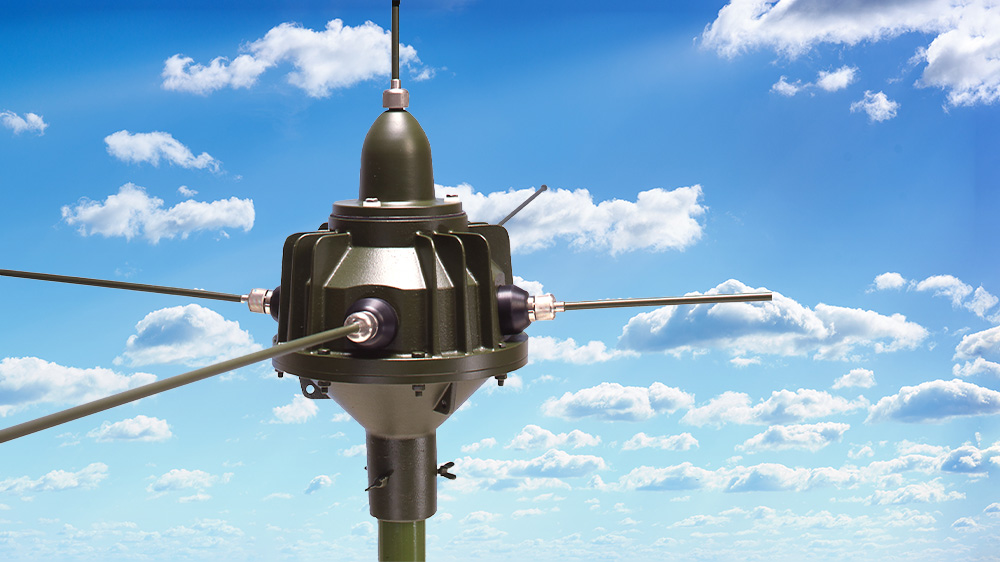

  • HD 2 A + STA 10 A/D/0.01-30 Active Combination Antenna HD 2 A + STA 10 A/D/0.01-30

    The HD 2 A + STA 10 A/D/0.01-30 combines two horizontally and one vertically polarized receiving antenna into one antenna system.
    The antenna is mostly applied where horizontally polarized waves are to be received in the frequency range 1.5 - 30 MHz.
    The vertical monopole covers the frequency range from 0.01 - 30 MHz.

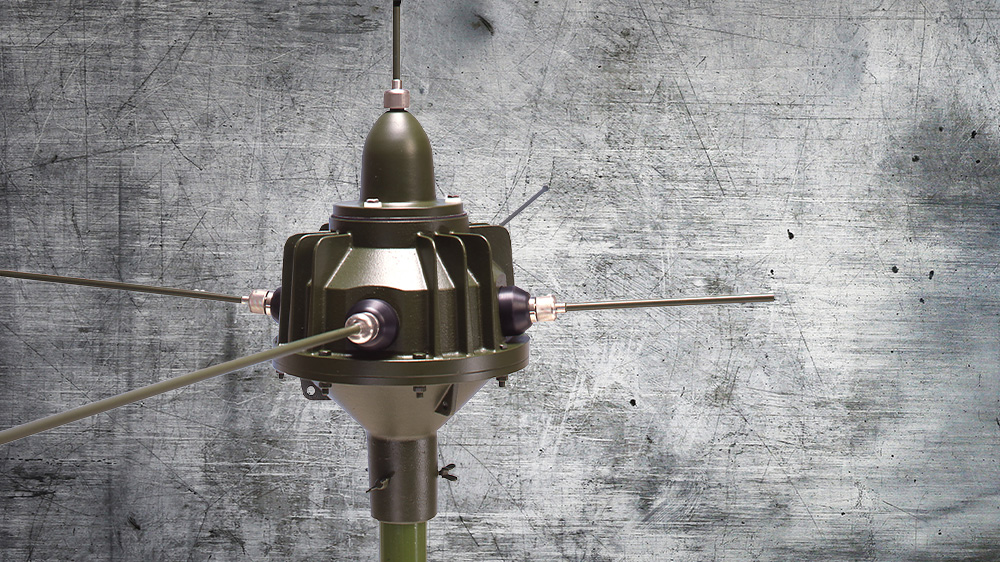

  • HD 2 A + STA 10 A/D/1.6-30 Active Combination Antenna HD 2 A + STA 10 A/D/1.6-30

    The HD 2 A + STA 10 A/D/1.6-30 combines two horizontally and one vertically polarized receiving antenna into one antenna system.
    The antenna is mostly applied where horizontally polarized waves are to be received in the frequency range 1.5 - 30 MHz.
    The vertical monopole covers the frequency range from 1.6 - 30 MHz.
  • Holder for Monopoles EAH 1 aas.tech Holder for Monopoles EAH 1

    The holder EAH 1 is applicable for mounting aas.tech active monopole antennas of the STA series on the supporting pipe TR 10/E1 or other 2“ pipe.
  • Remote Power Supplies aas.tech Remote Power Supplies

    The aas.tech GmbH & Co. KGis a provider of transmission technology and communication systems with a focus on active and passive antenna systems, receiving and transmission technology. Our business range covers design, development, construction, manufacture, sales, project management, installation, commissioning, training, and services.
  • Remote Power Supplies aas.tech Remote Power Supplies

    Remote power supplies are applicable to supply an active antenna with the needed remote power feeding through the coaxial cable. Different types of active antennas are supported.
  • STA 10 A/D/0.01-0.6 4 Active Monopoles STA 10 Series

    The STA 10 A/D/0.01-0.6 is an active monopole receiving antenna providing omnidirectional characteristics in the long-wave bands.
    It covers the frequency range from 0.01 - 0.6 MHz.
  • STA 10 A/D/0.01-1.6 3 Active Monopoles STA 10 Series

    The STA 10 A/D/0.01-1.6 is an active monopole receiving antenna providing omnidirectional characteristics in the long- and medium-wave bands.
    It covers the frequency range from 0.01 - 1.6 MHz.
  • STA 10 A/D/0.01-100 4 Active Monopoles STA 10 Series

    The STA 10 A/D/0.01-100 is an active monopole receiving antenna providing omnidirectional characteristics in the long-, medium- and short-wave and VHF LOW bands.
    It covers the frequency range from 10 kHz - 100 MHz.
